PRIME ENGINEERS

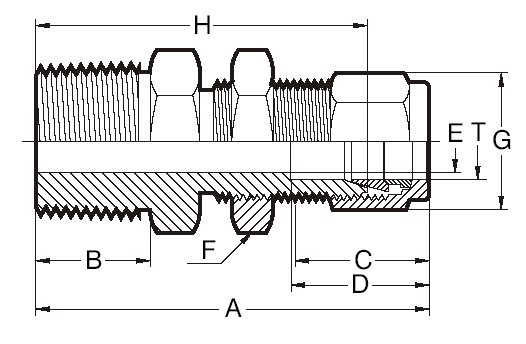

MALE BULKHEAD CONNECTOR

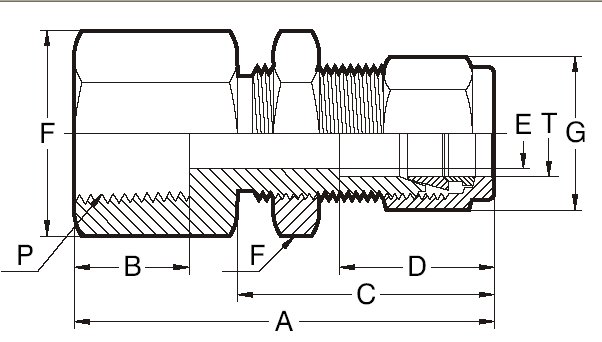

FEMALE BULKHEAD CONNECTOR

Imperial Tubing BMC

PART NO.

T TUBE OD

NPT

P

A

H

BODY

C

D

E

MIN

F

A/F

B



Panel Hole Size

Max Panel Thk

BMC22

1/8

1/8

1.83

1.57

0.97

0.50

0.09

1/2

0.38

21/64

0.50

BMC42

1/4

1/8

1.95

1.66

1.03

0.60

0.19

5/8

0.38

29/64

0.40

BMC44

1/4

1/4

2.13

1.84

1.03

0.60

0.19

5/8

0.56

29/64

0.40

BMC64

3/8

1/4

2.26

1.97

1.16

0.66

0.28

3/4

0.56

37/64

0.44

BMC66

3/8

3/8

2.26

1.97

1.16

0.66

0.28

3/4

0.56

37/64

0.44

BMC68

3/8

1/2

2.51

2.22

1.16

0.66

0.28

7/8

0.75

37/64

0.44

BMC86

1/2

3/8

2.49

2.09

1.25

0.90

0.38

15/16

0.56

49/64

0.50

BMC88

1/2

1/2

2.71

2.31

1.25

0.90

0.41

15/16

0.75

49/64

0.50

BMC1212

3/4

3/4

3.00

2.60

1.47

0.96

0.62

1-3/16

0.75

1-1/64

0.66

BMC1616

1

1

3.67

3.19

1.78

1.23

0.88

1-5/8

0.94

1-21/64

0.75

Metric Tubing BMCm

PART NO.

T TUBE OD

NPT

P

A

H

BODY

C

D

E

MIN

F

A/F

B



Panel Hole Size

Max Panel Thk

BMCm64

6

1/4

53.6

46.2

26.2

15.3

4.8

16.0

14.0

11.5

10.2

BMCm128

12

1/2"

68.8

58.7

31.8

22.8

9.5

24.0

19.0

19.5

12.7

Imperial Tubing BFC

PART NO.

T TUBE OD

NPT

P

A

H

BODY

C

D

E

MIN

F

A/F

B



Panel Hole Size

Max Panel Thk

BFC22

1/8

1/8

1.76

1.50

0.97

0.50

0.09

9/16

0.41

21/64

0.50

BFC42

1/4

1/8

1.85

1.56

1.03

0.60

0.19

5/8

0.41

29/64

0.40

BFC44

1/4

1/4

2.04

1.75

1.03

0.60

0.19

3/4

0.59

29/64

0.40

BFC64

3/8

1/4

2.17

1.88

1.16

0.66

0.28

3/4

0.59

37/64

0.44

BFC86

1/2

3/8

2.43

2.03

1.25

0.90

0.38

15/16

0.59

49/64

0.50

BFC88

1/2

1/2

2.62

2.22

1.25

0.90

0.41

1-1/16

0.78

49/64

0.50

Metric Tubing BFCm

PART NO.

T TUBE OD

NPT

P

A

H

BODY

C

D

E

MIN

F

A/F

B



Panel Hole Size

Max Panel Thk

BFCm64

6

1/4

51.8

44.4

26.2

15.3

4.8

19.0

15.0

11.5

10.2

BFCm128

12

1/2

66.5

56.4

31.8

22.8

9.5

27.0

19.8

19.5

12.7
