PRIME ENGINEERS

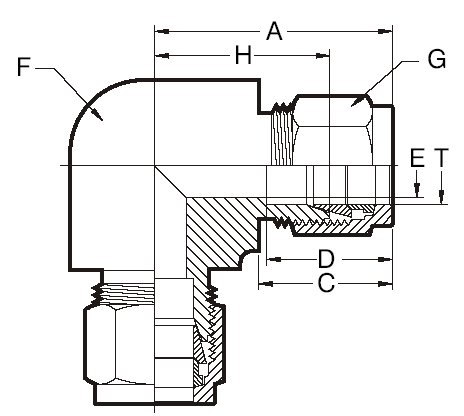

UNION ELBOW

Imperial Tubing EU

PART NO.

T TUBE OD

A

C

D

E

MIN

F

A/F

G

A/F

H

BODY



















EU2

1/8

0.88

0.60

0.50

0.09

1/2

7/16

0.62

EU3

3/16

1.00

0.63

0.64

0.12

1/2

1/2

0.74

EU4

1/4

1.06

0.70

0.60

0.19

9/16

9/16

0.77

EU5

5/16

1.13

0.73

0.64

0.25

9/16

5/8

0.84

EU6

3/8

1.20

0.76

0.66

0.28

5/8

1-1/16

0.91

EU8

1/2

1.42

0.86

0.90

0.41

13/16

7/8

1.02

EU10

5/8

1.50

0.86

0.96

0.50

15/16

1

1.10

EU12

3/4

1.57

0.86

0.96

0.62

1-1/16

1-1/8

1.17

EU14

7/8

1.76

0.86

1.02

0.72

1-1/4

1-1/4

1.36

EU16

1

1.93

1.04

1.23

0.88

1-3/8

1-1/2

1.45

Metric Tubing EUm

PART NO.

T TUBE OD

A

C

D

E

MIN

F

A/F

G

A/F

H

BODY



















EUm3

3

22.3

15.3

12.9

2.4

11.0

11.0

15.7

EUm6

6

27.0

17.7

15.3

4.8

15.0

14.0

19.6

EUm8

8

28.8

18.6

16.2

6.3

15.0

16.0

21.3

EUm10

10

23.9

31.5

19.5

17.2

7.9

17.0

19.0

EUm12

12

25.9

36.0

22.0

23.0

9.5

20.5

22.0

EUm16

16

28.0

38.0

22.0

24.6

12.7

24.0

25.4

EUm20

20

34.5

44.6

22.0

26.1

15.9

32.0

32.0

EUm20

25

36.8

49.0

26.5C

31.2D

21.8E

35.0

38.1
