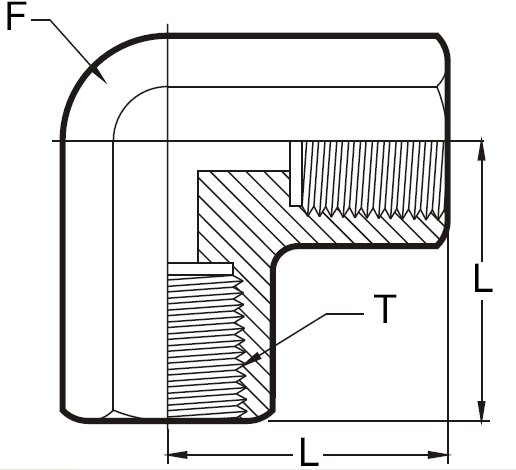

FEMALE ELBOW |
|

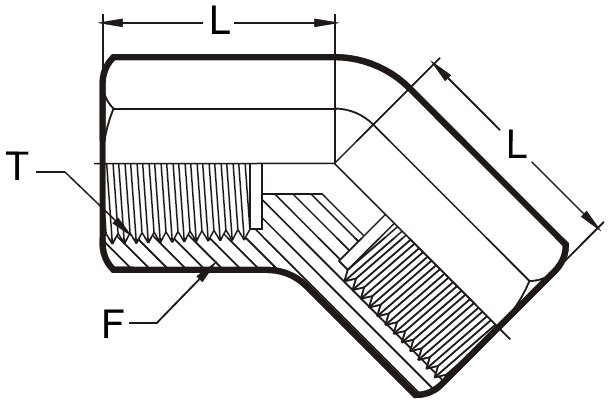

45º FEMALE ELBOW |
|

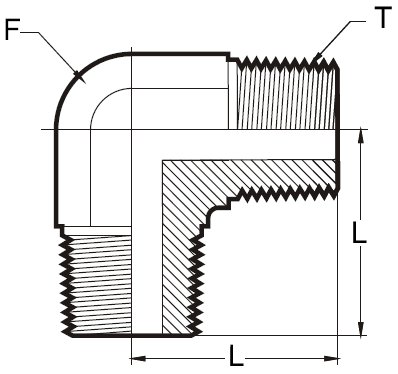

MALE ELBOW |
|

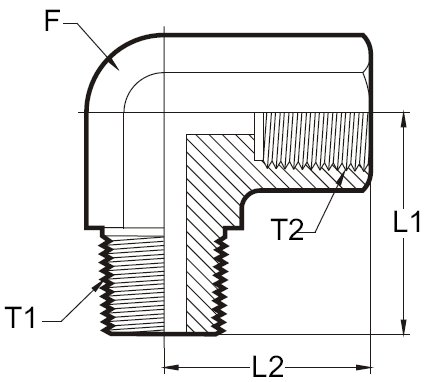

STREET ELBOW |
|

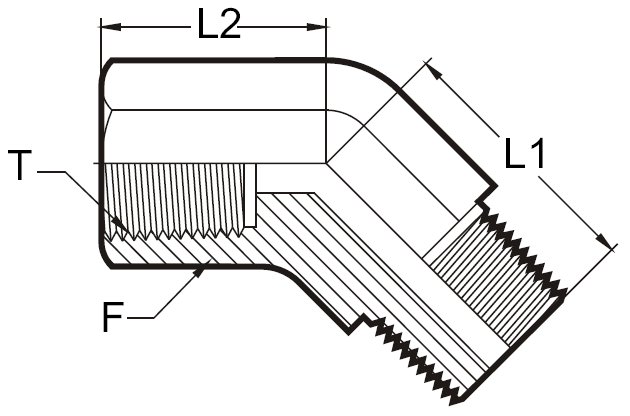

45º STREET ELBOW |
|
PRIME ENGINEERS |
|
PART NO. |
SIZE |
T NPT(F) |
F A/F |
L |
|
F.EL2 |
1/8” |
1/8” |
9/16” |
0.75 |
|
F.EL4 |
1/4” |
1/4” |
3/4” |
0.94 |
|
F.EL6 |
3/8” |
3/8” |
7/8” |
1.02 |
|
F.EL8 |
1/2” |
1/2” |
1-1/16” |
1.22 |
|
F.EL12 |
3/4” |
3/4” |
1-1/4” |
1.14 |
|
PART NO. |
SIZE |
T NPT(F) |
F A/F |
L |
|
E.M/M22 |
1/8” |
1/8” |
1/2” |
0.67 |
|
E.M/M44 |
1/4” |
1/4” |
9/16” |
0.98 |
|
E.M/M66 |
3/8” |
3/8” |
11/16” |
1.02 |
|
E.M/M88 |
1/2” |
1/2” |
7/8” |
1.34 |
|
E.M/M1212 |
3/4” |
3/4” |
1-1/16” |
1.57 |
|
PART NO. |
SIZE |
F A/F |
T1 NPT(M) |
T2 NPT(F) |
L1 |
L2 |
|
E.M/F22 |
1/8”X1/8” |
9/16” |
1/8” |
1/8” |
0.67 |
0.87 |
|
E.M/F44 |
1/4”X1/4” |
11/16” |
1/4” |
1/4” |
0.98 |
0.75 |
|
E.M/F66 |
3/8”X3/8” |
7/8” |
3/8” |
3/8” |
1.02 |
1.02 |
|
E.M/F88 |
1/2”X1/2” |
1-1/16” |
1/2” |
1/2” |
1.34 |
1.22 |
|
E.M/F1212 |
3/4”X3/4” |
1-1/4” |
3/4” |
3/4” |
1.57 |
1.22 |
|
E.M/F1616 |
1”X1” |
1-5/8” |
1” |
1” |
1.97 |
1.81 |
|
PART NO. |
SIZE |
T NPT(F) |
F A/F |
L |
|
45F.EL2 |
1/8” |
1/8” |
9/16” |
0.47 |
|
45F.EL4 |
1/4” |
1/4” |
3/4” |
0.69 |
|
45F.EL6 |
3/8” |
3/8” |
7/8” |
0.75 |
|
45F.EL8 |
1/2” |
1/2” |
1-1/16” |
0.94 |
|
45F.EL12 |
3/4” |
3/4” |
1-1/4” |
1.00 |
|
PART NO. |
SIZE |
T NPT(M/F) |
F A/F |
L1 |
L2 |
|
45E.M/F22 |
1/8” |
1/8” |
1/2” |
0.72 |
0.47 |
|
45E.M/F44 |
1/4” |
1/4” |
9/16” |
1.05 |
0.63 |
|
45E.M/F66 |
3/8” |
3/8” |
11/16” |
1.06 |
0.72 |
|
45E.M/F88 |
1/2” |
1/2” |
7/8” |
1.34 |
0.91 |
|
45E.M/F1212 |
3/4” |
3/4” |
1-1/16” |
1.38 |
0.97 |
