PRIME ENGINEERS
|
|

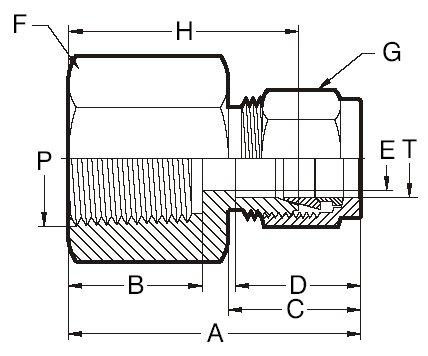

FEMALE CONNECTOR |
|
Imperial Tubing FC |
||||||||||
|
PART NO. |
‘T’ TUBE OD |
NPT P |
A |
B |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
FC22 |
1/8” |
1/8” |
1.13 |
0.39 |
0.60 |
0.50 |
0.09 |
9/16” |
7/16” |
0.87 |
|
FC24 |
1/8” |
1/4” |
1.32 |
0.59 |
0.60 |
0.50 |
0.09 |
3/4” |
7/16” |
1.06 |
|
FC32 |
3/16” |
1/8” |
1.17 |
0.39 |
0.63 |
0.54 |
0.12 |
9/16” |
1/2” |
0.91 |
|
FC42 |
1/4” |
1/8” |
1.23 |
0.39 |
0.70 |
0.60 |
0.19 |
9/16” |
9/16” |
0.94 |
|
FC44 |
1/4” |
1/4” |
1.41 |
0.59 |
0.70 |
0.60 |
0.19 |
3/4” |
9/16” |
1.12 |
|
FC46 |
1/4” |
3/8” |
1.48 |
0.59 |
0.70 |
0.60 |
0.19 |
7/8” |
9/16” |
1.19 |
|
FC48 |
1/4” |
1/2” |
1.67 |
0.78 |
0.70 |
0.60 |
0.19 |
1-1/16” |
9/16” |
1.38 |
|
FC52 |
5/16” |
1/8” |
1.26 |
0.39 |
0.73 |
0.64 |
0.25 |
9/16” |
5/8” |
0.97 |
|
FC54 |
5/16” |
1/4” |
1.45 |
0.59 |
0.73 |
0.64 |
0.25 |
3/4” |
5/8” |
1.16 |
|
FC64 |
3/8” |
1/4” |
1.48 |
0.59 |
0.76 |
0.66 |
0.28 |
3/4” |
11/16” |
1.19 |
|
FC66 |
3/8” |
3/8” |
1.54 |
0.59 |
0.76 |
0.66 |
0.28 |
7/8” |
11/16” |
1.25 |
|
FC68 |
3/8” |
1/2” |
1.73 |
0.78 |
0.76 |
0.66 |
0.28 |
1-1/16” |
11/16” |
1.44 |
|
FC84 |
1/2” |
1/4” |
1.59 |
0.59 |
0.86 |
0.90 |
0.41 |
13/16” |
7/8” |
1.19 |
|
FC86 |
1/2” |
3/8” |
1.65 |
0.59 |
0.86 |
0.90 |
0.41 |
7/8” |
7/8” |
1.25 |
|
FC88 |
1/2” |
1/2” |
1.84 |
0.78 |
0.86 |
0.90 |
0.41 |
1-1/16” |
7/8” |
1.44 |
|
FC106 |
5/8” |
3/8” |
1.65 |
0.59 |
0.86 |
0.96 |
0.50 |
15/16” |
1” |
1.25 |
|
FC108 |
5/8” |
1/2” |
1.84 |
0.78 |
0.86 |
0.96 |
0.50 |
1-1/16” |
1” |
1.44 |
|
FC1012 |
5/8” |
3/4” |
1.90 |
0.81 |
0.86 |
0.96 |
0.50 |
1-1/4” |
1” |
1.50 |
|
FC128 |
3/4” |
1/2” |
1.84 |
0.78 |
0.86 |
0.96 |
0.62 |
1-1/16” |
1-1/8” |
1.44 |
|
FC1212 |
3/4” |
3/4” |
1.90 |
0.81 |
0.86 |
0.96 |
0.62 |
1-1/4” |
1-1/8” |
1.50 |
|
FC1412 |
7/8” |
3/4” |
1.96 |
0.81 |
0.86 |
1.02 |
0.72 |
1-1/4” |
1-1/4” |
1.56 |
|
FC1612 |
1” |
3/4” |
2.10 |
0.81 |
1.04 |
1.23 |
0.88 |
1-3/8” |
1-1/2” |
1.62 |
|
FC1616 |
1” |
1” |
2.45 |
1.00 |
1.04 |
1.23 |
0.88 |
1-5/8” |
1-1/2” |
1.97 |
|
Metric Tubing FC |
||||||||||
|
PART NO. |
‘T’ TUBE OD |
NPT P |
A |
B |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
FCm32 |
3 |
1/8” |
28.7 |
9.7 |
15.3 |
12.9 |
2.4 |
14.0 |
12.7 |
22.1 |
|
FCm34 |
3 |
1/4” |
34.0 |
14.2 |
15.3 |
12.9 |
2.4 |
19.0 |
12.7 |
27.0 |
|
FCm62 |
6 |
1/8” |
31.3 |
9.7 |
17.7 |
15.3 |
4.8 |
14.0 |
14.0 |
23.9 |
|
FCm64 |
6 |
1/4” |
35.8 |
14.2 |
17.7 |
15.3 |
4.8 |
19.0 |
14.0 |
28.6 |
|
FCm66 |
6 |
3/8” |
37.6 |
14.2 |
17.7 |
15.3 |
4.8 |
22.0 |
14.0 |
30.2 |
|
FCm68 |
6 |
1/2” |
42.5 |
19.0 |
17.7 |
15.3 |
4.8 |
27.0 |
14.0 |
35.1 |
|
FCm84 |
8 |
1/4” |
37.0 |
14.2 |
18.6. |
16.2 |
6.3 |
19.0 |
16.0 |
29.5 |
|
FCm86 |
8 |
3/8” |
38.5 |
14.2 |
18.6 |
16.2 |
6.3 |
22.0 |
16.0 |
31.0 |
|
FCm88 |
8 |
1/2” |
43.3 |
19.0 |
18.6 |
16.2 |
6.3 |
27.0 |
16.0 |
35.8 |
|
FCm104 |
10 |
1/4” |
37.8 |
14.2 |
19.5 |
17.2 |
7.1 |
19.0 |
19.0 |
30.5 |
|
FCm106 |
10 |
3/8” |
39.4 |
14.2 |
19.5 |
17.2 |
7.9 |
22.0 |
19.0 |
31.8 |
|
FCm108 |
10 |
1/2” |
44.2 |
19.0 |
19.5 |
17.2 |
7.9 |
27.0 |
19.0 |
36.6 |
|
FCm124 |
12 |
1/4” |
40.3 |
14.2 |
22.0 |
22.8 |
9.5 |
20.5 |
22.0 |
30.2 |
|
FCm126 |
12 |
3/8” |
41.9 |
14.2 |
22.0 |
22.8 |
9.5 |
22.0 |
22.0 |
31.8 |
|
FCm128 |
12 |
1/2” |
46.7 |
19.0 |
22.0 |
22.8 |
9.5 |
27.0 |
22.0 |
36.6 |
|
FCm168 |
16 |
1/2” |
46.8 |
19.0 |
22.0 |
24.4 |
12.7 |
27.0 |
25.4 |
36.6 |
|
FCm2012 |
20 |
3/4” |
50.0 |
19.0 |
22.0 |
26.0 |
15.9 |
32.0 |
32.0 |
39.6 |
|
FCm2512 |
25 |
3/4” |
53.4 |
19.0 |
26.5 |
31.3 |
15.9 |
36.0 |
38.0 |
41.2 |
|
FCm2516 |
25 |
1” |
62.3 |
23.9 |
26.5 |
31.3 |
21.8 |
41.0 |
38.0 |
50.0 |
