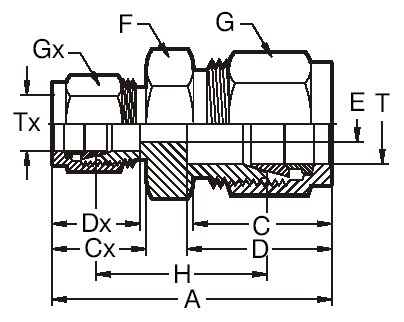

REDUCING UNION |
|
BULKHEAD UNION |
|
Imperial Tubing UR |
||||||||||||||
|
PART NO. |
T TUBE OD |
Tx TUBE OD |
A |
C |
Cx |
D |
Dx |
E MIN |
F A/F |
G NUT |
GX NUT |
H BODY |
||
|
UR42 |
1/4 |
1/8 |
1.52 |
0.70 |
0.60 |
0.60 |
0.50 |
0.09 |
1/2 |
9/16 |
7/16 |
0.97 |
||
|
UR54 |
5/16 |
1/4 |
1.66 |
0.73 |
0.70 |
0.64 |
0.60 |
0.19 |
9/16 |
5/8 |
9/16 |
1.08 |
||
|
UR64 |
3/8 |
1/4 |
1.70 |
0.76 |
0.70 |
0.66 |
0.60 |
0.19 |
5/8 |
11/16 |
9/16 |
1.12 |
||
|
UR84 |
1/2 |
1/4 |
1.85 |
0.86 |
0.70 |
0.90 |
0.60 |
0.19 |
13/16 |
7/8 |
9/16 |
1.16 |
||
|
UR86 |
1/2 |
3/8 |
1.91 |
0.86 |
0.76 |
0.90 |
0.66 |
0.28 |
13/16 |
7/8 |
11/16 |
1.22 |
||
|
UR106 |
5/8 |
3/8 |
1.94 |
0.86 |
0.76 |
0.96 |
0.66 |
0.28 |
15/16 |
1 |
11/16 |
1.25 |
||
|
UR108 |
5/8 |
1/2 |
2.05 |
0.86 |
0.86 |
0.96 |
0.90 |
0.41 |
15/16 |
1 |
7/8 |
1.25 |
||
|
UR126 |
3/4 |
3/8 |
2.00 |
0.86 |
0.86 |
0.96 |
0.66 |
0.28 |
1-1/16 |
1-1/8 |
11/16 |
1.31 |
||
|
UR128 |
3/4 |
1/2 |
2.11 |
0.86 |
0.86 |
0.96 |
0.90 |
0.41 |
1-1/16 |
1-1/8 |
7/8 |
1.31 |
||
|
UR1210 |
3/4 |
5/8 |
2.11 |
0.86 |
0.86 |
0.96 |
0.96 |
0.50 |
1-1/16 |
1-1/8 |
15/16 |
1.31 |
||
|
UR1612 |
1 |
3/4 |
2.38 |
1.04 |
0.86 |
1.23 |
0.96 |
0.62 |
1-3/8 |
1-1/2 |
1-1/8 |
1.50 |
||
|
Metric Tubing URm |
||||||||||||
|
PART NO. |
T TUBE OD |
Tx TUBE OD |
A |
C |
Cx |
D |
Dx |
E MIN |
F A/F |
G NUT |
GX NUT |
H BODY |
|
URm63 |
6 |
3 |
38.6 |
177 |
15.3 |
15.3 |
12.9 |
2.4 |
14 |
14 |
11 |
24.6 |
|
URm86 |
8 |
6 |
42.3 |
18.6 |
17.7 |
16.2 |
15.3 |
4.8 |
14 |
16 |
14 |
27.4 |
|
URm106 |
10 |
6 |
44.5 |
19.5 |
17.7 |
17.2 |
15.3 |
4.8 |
17 |
19 |
14 |
29.5 |
|
URm108 |
10 |
8 |
45.1 |
19.5 |
18.6 |
17.2 |
16.2 |
6.3 |
17 |
19 |
16 |
30.0 |
|
URm126 |
12 |
6 |
47.0 |
22.0 |
17.7 |
23.0 |
15.3 |
4.8 |
20.6 |
22 |
14 |
29.5 |
|
URm128 |
12 |
8 |
47.8 |
22.0 |
18.6 |
23.0 |
16.2 |
6.3 |
20.6 |
22 |
16 |
30.2 |
|
URm1210 |
12 |
10 |
48.7 |
22.0 |
19.5 |
23.0 |
17.2 |
7.9 |
20.6 |
22 |
19 |
31.0 |
|
URm1610 |
16 |
10 |
49.5 |
22.0 |
19.5 |
24.6 |
17.2 |
7.9 |
24 |
25.4 |
19 |
31.8 |
|
URm1612 |
16 |
12 |
52.0 |
22.0 |
22.0 |
24.6 |
23.0 |
9.5 |
24 |
25.4 |
22 |
31.8 |
|
URm2520 |
25 |
20 |
62.3 |
26.5 |
22.0 |
31.2 |
26.1 |
15.9 |
35 |
38 |
32 |
39.9 |
|
Imperial Tubing BHU |
|||||||||||
|
PART NO. |
T TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H |
J |
K |
Panel Hole Size |
|
BHU2 |
1/8 |
2.02 |
0.60 |
0.50 |
0.09 |
1/2 |
7/16 |
1.50 |
1.23 |
0.97 |
0.33 |
|
BHU3 |
3/16 |
2.11 |
0.63 |
0.64 |
0.12 |
7/16 |
1/2 |
1.59 |
1.26 |
1.00 |
0.39 |
|
BHU4 |
1/4 |
2.27 |
0.70 |
0.60 |
0.19 |
5/8 |
9/16 |
1.69 |
1.32 |
1.03 |
0.45 |
|
BHU5 |
5/16 |
2.39 |
0.73 |
0.64 |
0.25 |
11/16 |
5/8 |
1.81 |
1.41 |
1.12 |
0.52 |
|
BHU6 |
3/8 |
2.45 |
0.76 |
0.66 |
0.28 |
3/4 |
11/16 |
1.87 |
1.45 |
1.16 |
0.58 |
|
BHU8 |
1/2 |
2.80 |
0.86 |
0.90 |
0.41 |
15/16 |
7/8 |
2.00 |
1.65 |
1.25 |
0.77 |
|
BHU10 |
5/8 |
2.86 |
0.86 |
0.96 |
0.50 |
1-1/16 |
1 |
2.06 |
1.68 |
1.28 |
0.89 |
|
BHU12 |
3/4 |
3.11 |
0.86 |
0.96 |
0.62 |
1-3/16 |
1-1/8 |
2.31 |
1.87 |
1.47 |
1.02 |
|
BHU16 |
1 |
3.77 |
1.04 |
1.23 |
0.88 |
1-5/8 |
1-1/2 |
2.81 |
2.26 |
1.78 |
1.33 |
|
Metric Tubing BHU |
||||||||||||
|
PART NO. |
T TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H |
J |
K |
Panel Hole Size |
|
|
BHUm3 |
3 |
51.3 |
15.3 |
12.9 |
2.4 |
12.7 |
11.0 |
38.1 |
31.2 |
24.6 |
8.3 |
|
|
BHUm6 |
6 |
57.7 |
17.7 |
15.3 |
4.8 |
16.0 |
14.0 |
42.9 |
33.6 |
26.2 |
11.5 |
|
|
BHUm8 |
8 |
61.0 |
18.6 |
16.2 |
6.3 |
17.4 |
16.0 |
46.0 |
36.1 |
28.6 |
13.1 |
|
|
BHUm10 |
10 |
63.7 |
19.5 |
17.2 |
7.9 |
19.0 |
17.4 |
48.5 |
37.0 |
29.4 |
16.3 |
|
|
BHUm12 |
12 |
71.0 |
22.0 |
23.0 |
9.5 |
24.0 |
22.0 |
50.8 |
41.9 |
31.8 |
19.5 |
|
|
BHUm16 |
16 |
72.5 |
22.0 |
24.6 |
12.7 |
27.0 |
25.4 |
52.4 |
42.6 |
32.5 |
22.8 |
|
|
BHUm20 |
20 |
84.5 |
22.0 |
26.1 |
15.9 |
35.0 |
32.0 |
64.3 |
53.0 |
42.9 |
29.0 |
|
|
BHUm25 |
25 |
95.8 |
26.5 |
31.2 |
21.8 |
41.0 |
38.0 |
71.4 |
57.4 |
45.2 |
33.7 |
|
