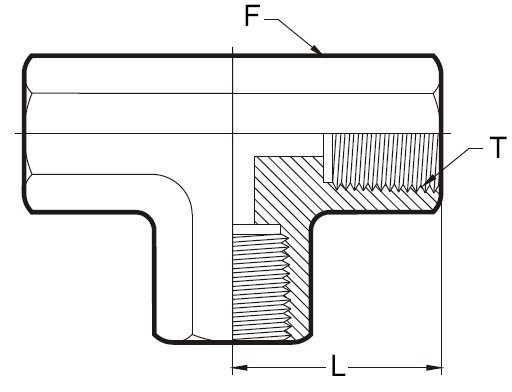

FEMALE TEE |
|

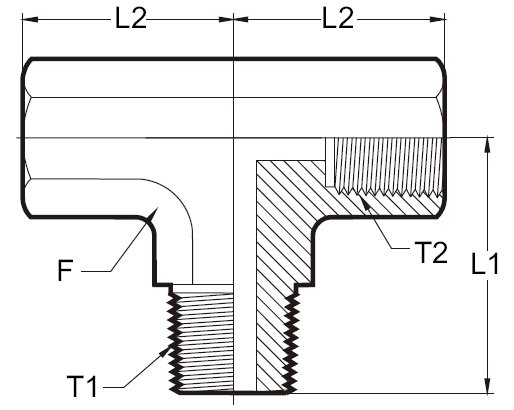

MALE FEMALE BRANCH TEE |
|

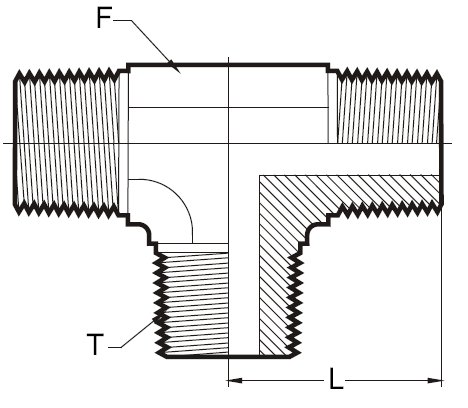

MALE TEE |
|

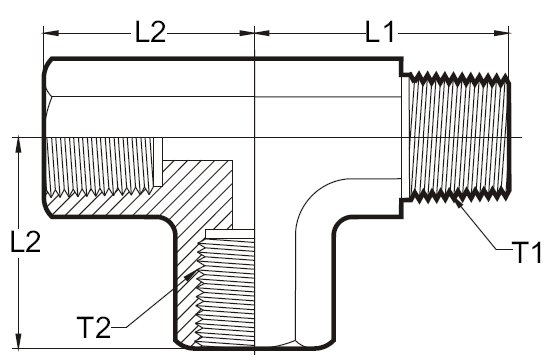

STREET TEE |
|
PRIME ENGINEERS
|
|

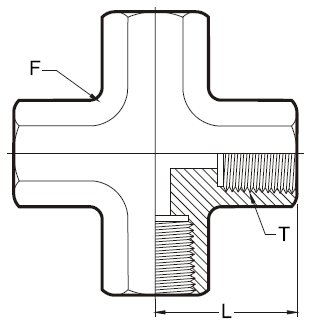

FEMALE CROSS |
|
PART NO. |
SIZE |
F A/F |
T NPT(F) |
L |
|
F.TEE2 |
1/8” |
9/16” |
1/8” |
0.79 |
|
F.TEE4 |
1/4” |
11/16” |
1/4” |
0.94 |
|
F.TEE6 |
3/8” |
7/8” |
3/8” |
0.98 |
|
F.TEE8 |
1/2” |
1-1/16” |
1/2” |
1.22 |
|
F.TEE12 |
3/4” |
1-1/4” |
3/4” |
1.57 |
|
PART NO. |
SIZE |
F A/F |
T NPT(F) |
L |
|
M.TEE2 |
1/8” |
1/8” |
1/2” |
0.75 |
|
M.TEE4 |
1/4” |
1/4” |
9/16” |
0.87 |
|
M.TEE6 |
3/8” |
3/8” |
11/16” |
0.94 |
|
M.TEE8 |
1/2” |
1/2” |
7/8” |
1.30 |
|
M.TEE12 |
3/4” |
3/4” |
1-1/16” |
1.38 |
|
PART NO. |
SIZE |
F A/F |
T1 NPT(M) |
T2 NPT(F) |
L1 |
L2 |
|
TTF.M/F22 |
1/8”X1/8” |
9/16” |
1/8” |
1/8” |
0.83 |
0.75 |
|
TTF.M/F44 |
1/4”X1/4” |
3/4” |
1/4” |
1/4” |
1.16 |
0.89 |
|
TTF.M/F66 |
3/8”X3/8” |
7/8” |
3/8” |
3/8” |
1.34 |
1.02 |
|
TTF.M/F88 |
1/2”X1/2” |
1-1/16” |
1/2” |
1/2” |
1.50 |
1.18 |
|
TTF.M/F1212 |
3/4”X3/4” |
1-1/4” |
3/4” |
3/4” |
1.89 |
1.57 |
|
PART NO. |
SIZE |
F A/F |
T1 NPT(M) |
T2 NPT(F) |
L1 |
L2 |
|
TFT.M/F22 |
1/8”X1/8” |
9/16” |
1/8” |
1/8” |
0.83 |
0.75 |
|
TFT.M/F44 |
1/4”X1/4” |
3/4” |
1/4” |
1/4” |
0.98 |
0.87 |
|
TFT.M/F66 |
3/8”X3/8” |
7/8” |
3/8” |
3/8” |
1.34 |
1.02 |
|
TFT.M/F88 |
1/2”X1/2” |
1-1/16” |
1/2” |
1/2” |
1.50 |
1.18 |
|
TFT.M/F1212 |
3/4”X3/4” |
1-1/4” |
3/4” |
3/4” |
1.89 |
1.57 |
|
PART NO. |
SIZE |
F A/F |
T1 NPT(M) |
T2 NPT(F) |
|
F.CR2 |
1/8” |
9/16” |
1/8” |
0.79 |
|
F.CR4 |
1/4” |
11/16” |
1/4” |
0.83 |
|
F.CR6 |
3/8” |
7/8” |
3/8” |
0.98 |
|
F.CR8 |
1/2” |
1-1/16” |
1/2” |
1.22 |
