PRIME ENGINEERS
|
|

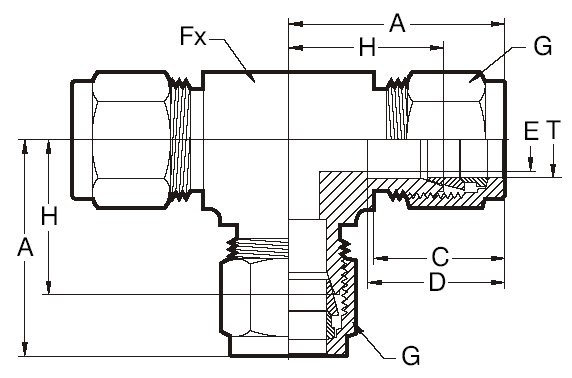

UNION TEE |
|

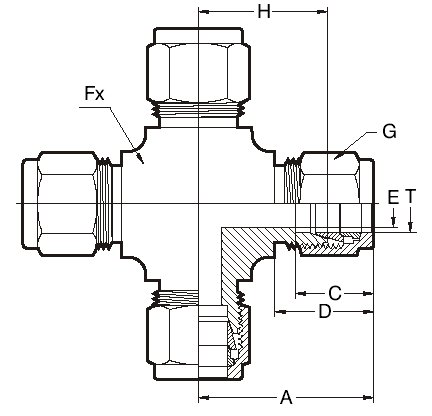

UNION CROSS |
|
Imperial Tubing TU |
||||||||
|
PART NO. |
‘T’ TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
TU2 |
1/8” |
0.88 |
0.60 |
0.50 |
0.09 |
1/2” |
7/16” |
0.62 |
|
TU3 |
3/16” |
1.00 |
0.63 |
0.64 |
0.12 |
1/2” |
1/2” |
0.70 |
|
TU4 |
1/4” |
1.06 |
0.70 |
0.60 |
0.19 |
9/16” |
9/16” |
0.77 |
|
TU5 |
5/16” |
1.17 |
0.73 |
0.64 |
0.25 |
9/16” |
5/8” |
0.88 |
|
TU6 |
3/8” |
1.20 |
0.76 |
0.66 |
0.28 |
5/8” |
11/16” |
0.91 |
|
TU8 |
1/2” |
1.42 |
0.86 |
0.90 |
0.41 |
13/16” |
7/8” |
1.02 |
|
TU10 |
5/8” |
1.50 |
0.86 |
0.96 |
0.50 |
15/16” |
1” |
1.13 |
|
TU12 |
3/4” |
1.57 |
0.86 |
0.96 |
0.62 |
1-1/16” |
1-1/8” |
1.17 |
|
TU14 |
7/8” |
1.76 |
0.86 |
1.02 |
0.72 |
1-1/4” |
1-1/4” |
1.36 |
|
TU16 |
1” |
1.93 |
1.04 |
1.23 |
0.88 |
1-3/8” |
1-1/2” |
1.45 |
|
Metric Tubing TUm |
||||||||
|
PART NO. |
‘T’ TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
TUm3 |
3 |
22.3 |
15.3 |
12.7 |
2.4 |
12.7 |
11.0 |
15.70 |
|
TUm6 |
6 |
27.0 |
17.7 |
15.3 |
4.8 |
12.7 |
14.0 |
19.60 |
|
TUm8 |
8 |
29.7 |
18.6 |
16.2 |
6.3 |
15.0 |
16.0 |
22.20 |
|
TUm10 |
10 |
31.5 |
19.5 |
17.5 |
7.9 |
17.0 |
19.0 |
23.90 |
|
TUm12 |
12 |
36.0 |
22.0 |
23.0 |
9.5 |
22.0 |
22.0 |
25.90 |
|
TUm16 |
16 |
38.0 |
22.0 |
24.6 |
12.7 |
24.0 |
25.4 |
28.70 |
|
TUm20 |
20 |
44.6 |
22.0 |
26.1 |
15.9 |
32.0 |
32.0 |
34.50 |
|
TUm25 |
25 |
49.0 |
26.5 |
31.2 |
21.8 |
35.0 |
38.0 |
36.80 |
|
Imperial Tubing CR |
||||||||
|
PART NO. |
‘T’ TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
CR2 |
1/8” |
0.88 |
0.60 |
0.50 |
0.09 |
1/2” |
7/16” |
0.62 |
|
CR3 |
3/16” |
1.00 |
0.63 |
0.64 |
0.12 |
1/2” |
1/2” |
0.70 |
|
CR4 |
1/4” |
1.06 |
0.70 |
0.60 |
0.19 |
9/16” |
9/16” |
0.77 |
|
CR5 |
5/16” |
1.17 |
0.73 |
0.64 |
0.25 |
9/16” |
5/8” |
0.88 |
|
CR6 |
3/8” |
1.20 |
0.76 |
0.66 |
0.28 |
5/8” |
11/16” |
0.91 |
|
CR8 |
1/2” |
1.42 |
0.86 |
0.90 |
0.41 |
13/16” |
7/8” |
1.02 |
|
CR10 |
5/8” |
1.50 |
0.86 |
0.96 |
0.50 |
15/16” |
1” |
1.13 |
|
CR12 |
3/4” |
1.57 |
0.86 |
0.96 |
0.62 |
1-1/16” |
1-1/8” |
1.17 |
|
CR14 |
7/8” |
1.76 |
0.86 |
1.02 |
0.72 |
1-1/4” |
1-1/4” |
1.36 |
|
CR16 |
1” |
1.93 |
1.04 |
1.23 |
0.88 |
1-3/8” |
1-1/2” |
1.45 |
|
Metric Tubing CR |
|||||||||
|
PART NO. |
‘T’ TUBE OD |
A |
C |
D |
E MIN |
F A/F |
G A/F |
H BODY |
|
|
CRm3 |
3 |
22.3 |
15.3 |
12.7 |
2.4 |
12.7 |
11.0 |
15.70 |
|
|
CRm6 |
6 |
27.0 |
17.7 |
15.3 |
4.8 |
12.7 |
14.0 |
19.60 |
|
|
CRm8 |
8 |
29.7 |
18.6 |
16.2 |
6.3 |
15.0 |
16.0 |
22.20 |
|
|
CRm10 |
10 |
31.5 |
19.5 |
17.5 |
7.9 |
17.0 |
19.0 |
23.90 |
|
|
CRm12 |
12 |
36.0 |
22.0 |
23.0 |
9.5 |
22.0 |
22.0 |
25.90 |
|
|
CRm16 |
16 |
38.0 |
22.0 |
24.6 |
12.7 |
24.0 |
25.4 |
28.70 |
|
|
CRm20 |
20 |
44.6 |
22.0 |
26.1 |
15.9 |
32.0 |
32.0 |
34.50 |
|
|
CRm25 |
25 |
49.0 |
26.5 |
31.2 |
21.8 |
35.0 |
38.0 |
36.80 |
|
